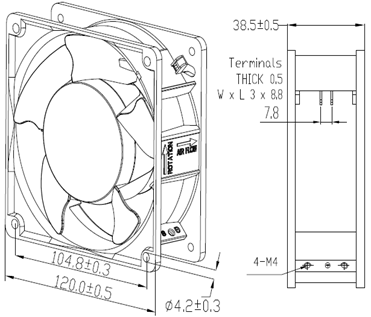

您的位置:首页 >产品中心 > 交流风扇 > 120 x 120 x 38mm

12038 5 impellers 220V
50~ 100 CFM
  • Specification
    Model
    Bearing
    Voltage
    Freq
    Current
    Power
    Speed
     Air Flow
    Static
    Pressure

    Noise
    VAC
    Hz
    A
    W
    RPM
      CFM
    m3/min
    mm H2O
    dB-A
    12038B2XL
    Ball
    220-240
    50/60
    0.14/0.11
    20/17
    2700/3050
    86/100
    2.44/2.83
    7.8/8.3
    43/47
    12038B2XT
    Ball
    220-240
    50/60
    0.14/0.11
    20/17
    2700/3050
    86/100
    2.44/2.83
    7.8/8.3
    43/47
    12038B2HL
    Ball
    220-240
    50/60
    0.13/0.11
    18/16
    2650/2950
    85/95
    2.41/2.69
    7.7/8.0
    42/45
    12038B2HT
    Ball
    220-240
    50/60
    0.13/0.11
    18/16
    2650/2950
    85/95
    2.41/2.69
    7.7/8.0
    42/45
    12038B2ML
    Ball
    220-240
    50/60
    0.09/0.08
    15/14
    2300/2300
    74/74
    2.10/2.10
    5.0/3.7
    39/39
    12038B2MT
    Ball
    220-240
    50/60
    0.09/0.08
    15/14
    2300/2300
    74/74
    2.10/2.10
    5.0/3.7
    39/39
    12038B2LL
    Ball
    220-240
    50/60
    0.06/0.05
    11/9
    2000/1650
    64/51
    1.81/1.44
    3.0/1.7
    35/27
    12038B2LT
    Ball
    220-240
    50/60
    0.06/0.05
    11/9
    2000/1650
    64/51
    1.81/1.44
    3.0/1.7
    35/27
    12038S2HL
    Sleeve
    220-240
    50/60
    0.13/0.11
    18/16
    2600/2900
    81/94
    2.29/2.66
    7.5/6.8
    42/45
    12038S2HT
    Sleeve
    220-240
    50/60
    0.13/0.11
    18/16
    2600/2900
    81/94
    2.29/2.66
    7.5/6.8
    42/45
    12038S2ML
    Sleeve
    220-240
    50/60
    0.09/0.08
    15/14
    2400/2100
    80/70
    2.27/1.98
    6.0/3.5
    40/37
    12038S2MT
    Sleeve
    220-240
    50/60
    0.09/0.08
    15/14
    2400/2100
    80/70
    2.27/1.98
    6.0/3.5
    40/37
    12038S2LL
    Sleeve
    220-240
    50/60
    0.07/0.07
    13/12
    2000/1750
    60/50
    1.70/1.42
    2.8/1.7
    35/30
    12038S2LT
    Sleeve
    220-240
    50/60
    0.07/0.07
    13/12
    2000/1750
    60/50
    1.70/1.42
    2.8/1.7
    35/30

    All model could be customized. Please contact with YYC Sales.                         Safety:     UL/TUV/CE/CCC

    Specifications are subject to change without notice.


    Air Flow-Static Pressure Characteristics


          Frame: Aluminum alloy

      Impeller: PBT Plastic

      Protected: Impedance protected

      Connection: Lead Wire or Terminals

      Ball Bearing: -20°C to +70°C

      Sleeve Bearing: -10°C to +70°C

      Package:40PCS/CTN
